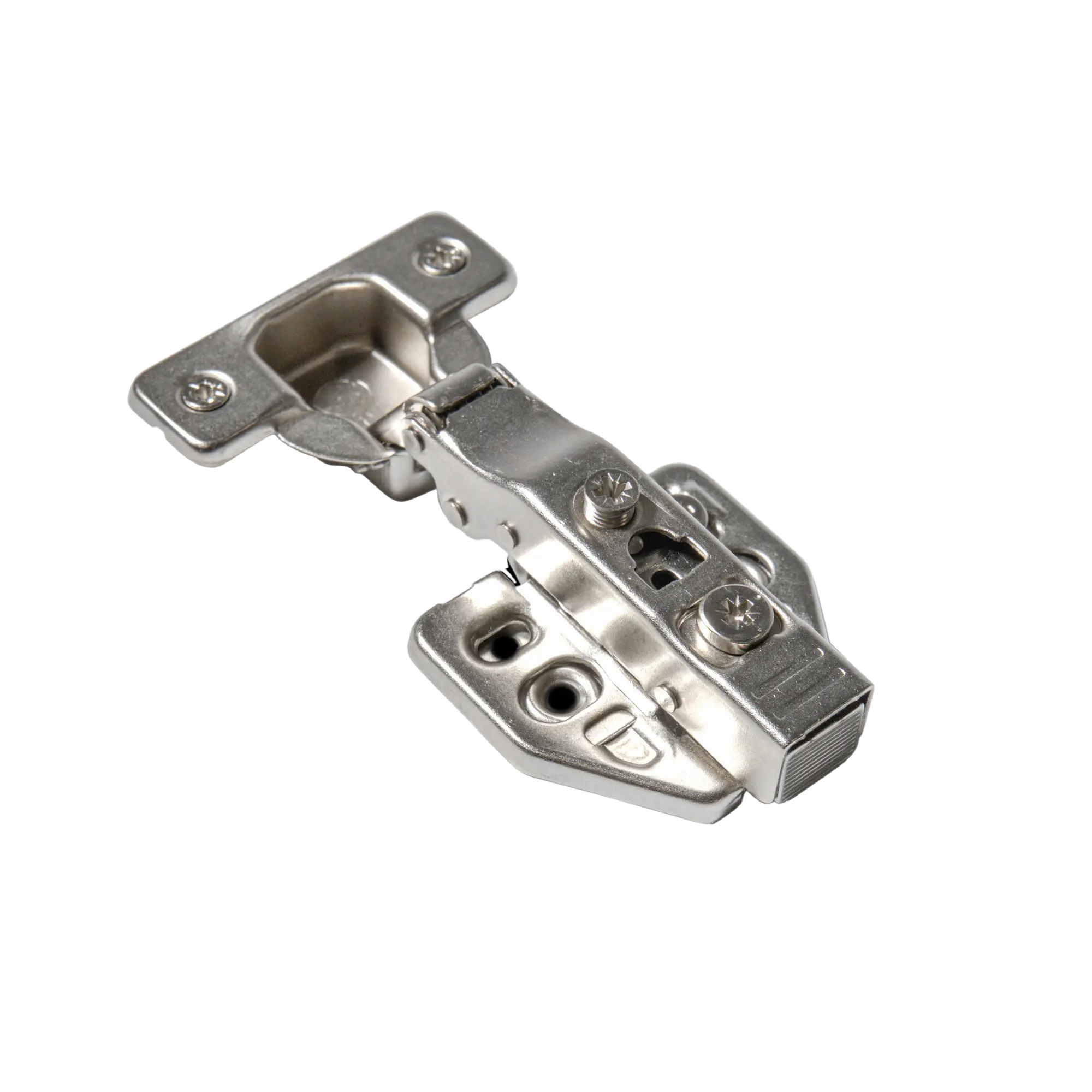

Clip on Frameless 319
Enhance your cabinet projects with our Concealed Frameless Soft Close Hinges. These hinges offer a modern design and a built-in soft-close mechanism, ensuring quiet and gentle door closure. Rest assured, our hinges surpass industry standards, establishing a new standard for quality and reliability in cabinet upgrades.

SKU: SY319

Elevate your cabinet projects with our Concealed Frameless Soft Close Hinges, designed to combine style and performance seamlessly. These hinges feature a sleek, concealed design for a modern aesthetic and incorporate an integrated soft-close mechanism for gentle, noiseless door closure. Rest assured, our hinges not only meet but exceed industry standards, setting a new benchmark for quality and reliability in your cabinet upgrades.

Opening angleClosing typeApplicationDiameter of hinge cup
105°Soft closeFace Frame35mm
Boring distance rangeDistance of cup holes centersDoor thicknessFinishing
2.5mm45mm14-21mmNickel plated
Height of hinge cupMaterial ThicknessMain material
10.5mm0.8-1.2-1.2mmCold-rolled steel
Technical Sheet
Product & Sales DescriptionSKU
Compact Soft Close 3D Hinge, Press-in dowels (1 1/4" Overlay)SY301-114D
Compact Soft Close 3D Hinge, Press-in dowels(1" Overlay)SY301-100D
Compact Soft Close 3D Hinge, Press-in dowels (3/4" Overlay)SY301-34D
Compact Soft Close 3D Hinge, Press-in dowels (1/2" Overlay)SY301-12D
Compact Soft Close 3D Hinge(1 1/4" Overlay)SY301-114
Compact Soft Close 3D Hinge (1" Overlay)SY301-100
Compact Soft Close 3D Hinge (3/4" Overlay)SY301-34
Compact Soft Close 3D Hinge (1/2" Overlay)SY301-12
Technical Sheet

Designed to elevate every detail of your project with unmatched durability

Engineered to support modern cabinetry with purpose-built controlbalancesilence
